HF-IR3602306A 360° Industrial Lens 2.7-70mm
|
HIFLY 360 degree Industrial lens is divided into internal and external observations. It detects the internal view or appearance of the measured object in 360 degrees, and transmits HD images in real time. |
|
● Sensor Size: 2/3". |
|
● Working Distance: 2.7-70mm. |
|
● F/NO: F8, C-Mount. ● High contrast and excellent imaging effects. ● Suitable suitable for appearance detection, inner wall detection, cylinder and complex structure detection, etc. |
| Model | Sensor Size | F/NO. | Image Size(mm) | Working distance(mm) | Target Dia(mm) | Inspection Height(mm) | Mount |
| HF-OR3601802A | 1/1.8" | F8.0-16 | Ф5.32 | 9-45.4 | 7.5-30 | 5.3-25 | C |
| HF-OR3602303A | 2/3" | F8.0-16 | Ф6.6 | 15-49 | 7.5-30 | 4.2-23.5 | C |
| HF-OR3601204A | 1/2" | F7.0-16 | － | 8-44 | 7-35 | 5-28 | C |
| HF-OR3601305A | 1/3" | F6.0-16 | Ф3.6 | 9.7-46.5 | 7.5-30 | 6.4-25.6 | C |
| HF-IR3602306A | 2/3" | － | － | 2.7-70 | 5-120 | 5-123 | C |
| HF-OR3601207A | 1/2" | F6.0-12 | － | 10-43 | 30-80 | 26.5-46.6 | C |
| HF-OR3602308A | 2/3" | F1.6-16 | Ф6.6 | 2-5 | 0.8-30 | 7.6-17 | C |
| HF-OIR3601809A | 2/3" | F1.6-16 | Ф6.6 | 12.6 | 5-70 | 7.1-26.6 | C |
| HF-OR3601811A | 1/2" | F8.0-22 | － | 15-66 | 5-40 | 5-10 | C |
| Please contact us learn more models！ | |||||||

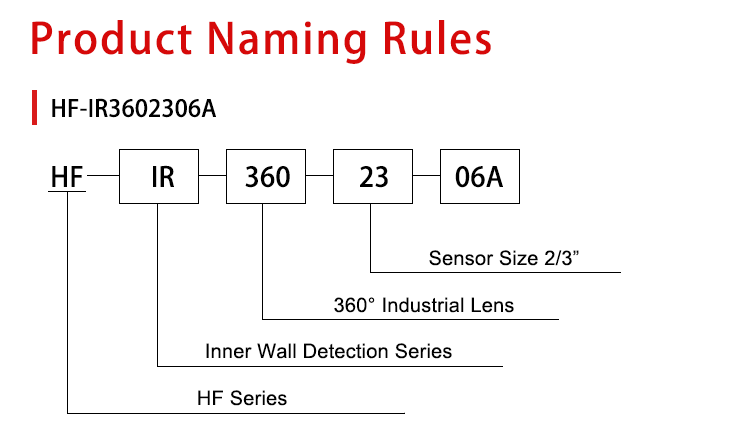

| Model | HF-IR3602306A |
| Type | 360 Degree Industrial Lens-Inner Wall Detection |
| Sensor Size | 2/3" |
| Image Size | φ6.6 |
| WD | 2.7-70mm |
| F/NO. | 8 |
| Target Dia | 5-120mm |
| Inspection Height | 5-123mm |
| Mount | C-Mount |
| Main Material | Aluminum Alloy + optical Glass |
| Color | Black |
| Weight（g) | — |
| Warranty | 2 years |
| Custom Design | Supported |
Bottle cap gasket dirt detection

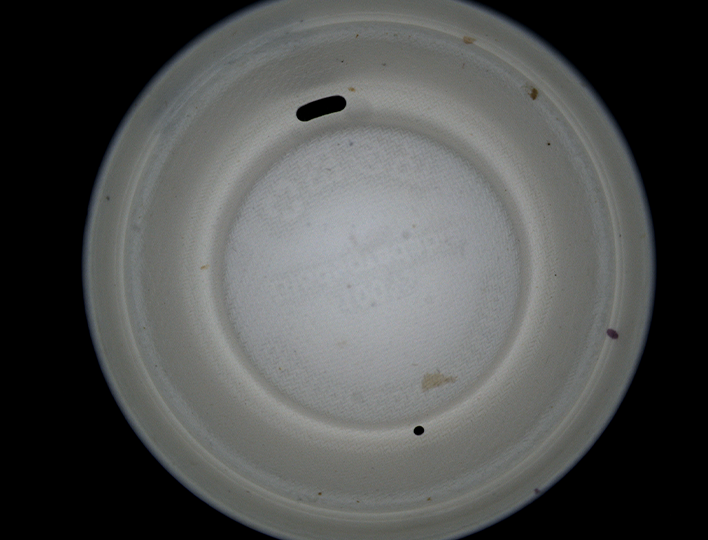

Bottle cap gasket is an important part to ensure the sealing and safety of the product. The shape and type of foreign body in the gasket inside the bottle cap can be observed by using a 360-degree inner wall inspection lens. There is no need to take out the gasket to check, reducing the time cost.
Bottle cap internal defects and dirt detection

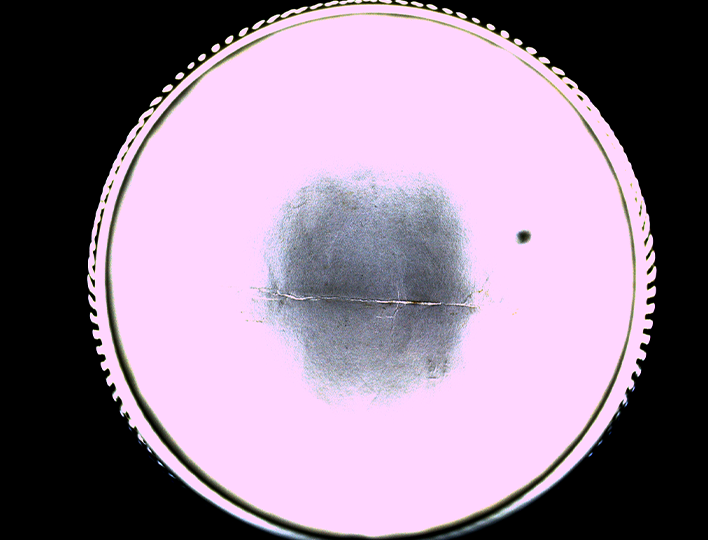

The full-dimensional detection content of the cover has structural defects (uneven defects of the inner wall caused by injection molding/stamping); Functional defects (insufficient gasket compression leads to substandard air tightness); Dirt detection (foreign body residue).
Rubber mold internal detection

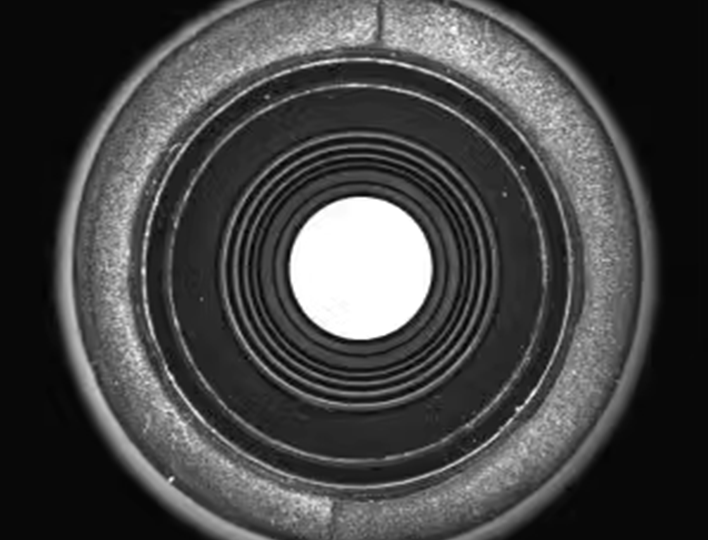

Detect micro or macro defects such as cracks, wear, depressions, bubbles and burrs on the inner wall of the mold, such as scratches or corrosion spots caused by friction after long-term use of the mold.
Bottle outer wall character detection

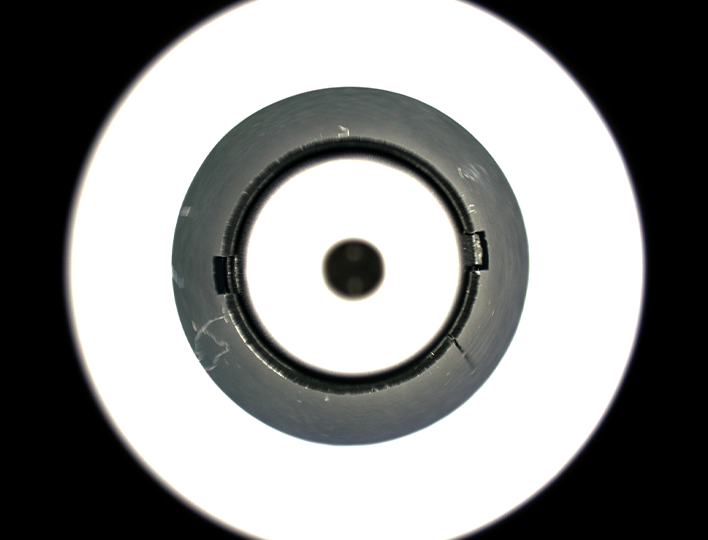

It is suitable for comprehensive visual inspection of complex structural parts, such as identifying small cracks in the inner wall of parts caused by stress concentration, fatigue or machining process.
