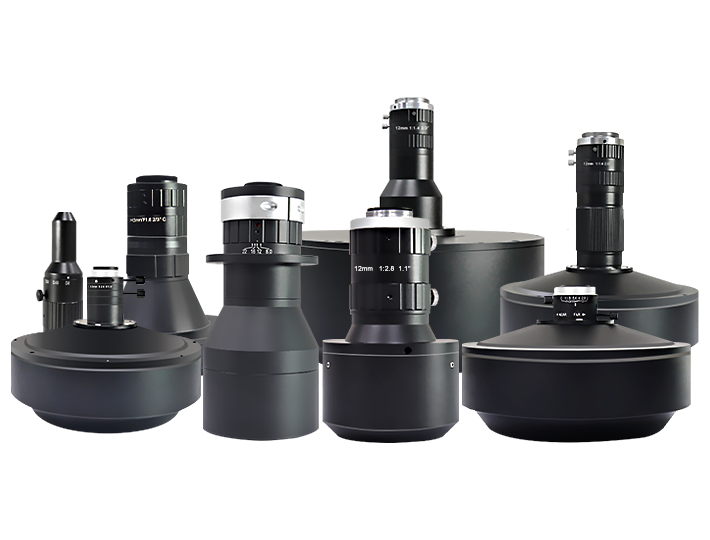

HF-OR3601204A 360° Industrial Lens 8-44mm
|
HIFLY 360 degree Industrial lens is divided into internal and external observations. It detects the internal view or appearance of the measured object in 360 degrees, and transmits HD images in real time. |
|
● Sensor Size: 1/2". |
|
● Working Distance: 8-44mm. |
|
● F/NO: F7-16, C-Mount. ● High contrast and excellent imaging effects. ● Suitable suitable for appearance detection, inner wall detection, cylinder and complex structure detection, etc. |
| Model | Sensor Size | F/NO. | Image Size(mm) | Working distance(mm) | Target Dia(mm) | Inspection Height(mm) | Mount |
| HF-OR3601802A | 1/1.8" | F8.0-16 | Ф5.32 | 9-45.4 | 7.5-30 | 5.3-25 | C |
| HF-OR3602303A | 2/3" | F8.0-16 | Ф6.6 | 15-49 | 7.5-30 | 4.2-23.5 | C |
| HF-OR3601204A | 1/2" | F7.0-16 | － | 8-44 | 7-35 | 5-28 | C |
| HF-OR3601305A | 1/3" | F6.0-16 | Ф3.6 | 9.7-46.5 | 7.5-30 | 6.4-25.6 | C |
| HF-IR3602306A | 2/3" | － | － | 2.7-70 | 5-120 | 5-123 | C |
| HF-OR3601207A | 1/2" | F6.0-12 | － | 10-43 | 30-80 | 26.5-46.6 | C |
| HF-OR3602308A | 2/3" | F1.6-16 | Ф6.6 | 2-5 | 0.8-30 | 7.6-17 | C |
| HF-OIR3601809A | 2/3" | F1.6-16 | Ф6.6 | 12.6 | 5-70 | 7.1-26.6 | C |
| HF-OR3601811A | 1/2" | F8.0-22 | － | 15-66 | 5-40 | 5-10 | C |
| Please contact us learn more models！ | |||||||
| Model | HF-OR3601204A |
| Type | 360 Degree Industrial Lens-Outer Wall Detection |
| Sensor Size | 1/2" |
| Image Size | - |
| WD | 8-44mm |
| F/NO. | F7-16 |
| Target Dia | 7-35mm |
| Inspection Height | 5-28mm |
| Mount | C-Mount |
| Main Material | Aluminum Alloy + optical Glass |
| Color | Black |
| Weight（g) | — |
| Warranty | 2 years |
| Custom Design | Supported |

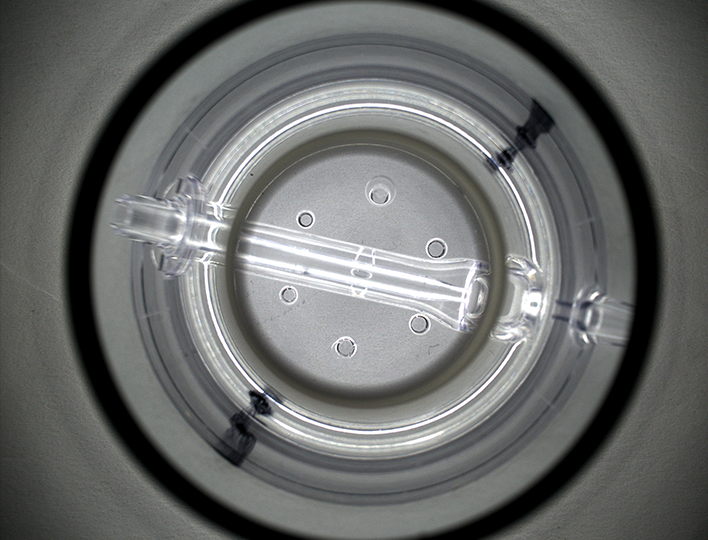

Transparent bottle cap outer wall detection
Detect scratches, bubbles, burrs and other imperceptible minor defects on the outer wall of the bottle cap. Subtle scratches may affect the seal of the bottle cap, and bubbles may lead to insufficient material strength.

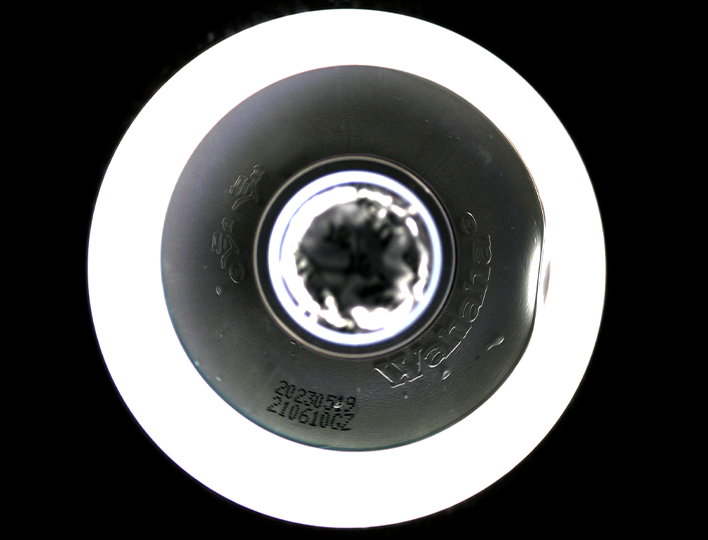

Bottle appearance deformation detection
Detection of bottle body bending and uneven (appearance deformation); Scratches, wear (damage during transportation); Defects such as stains, foreign bodies, etc. Eliminate defective products and improve quality.

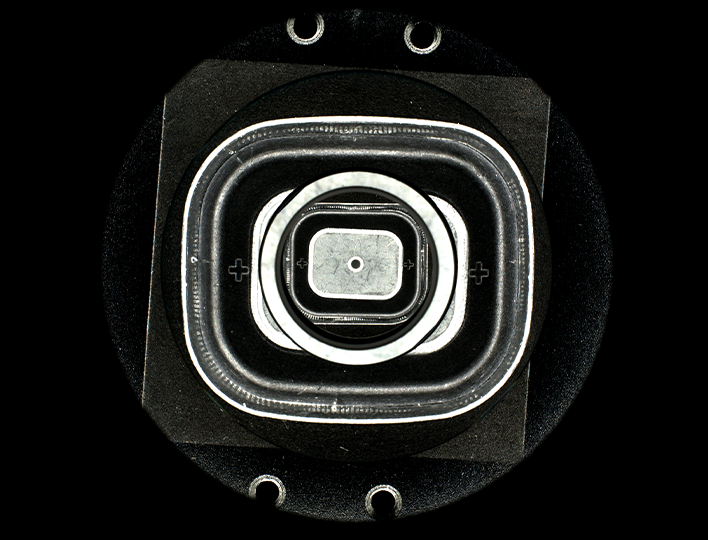

Metal parts outer wall defect detection
Full surface defect detection: scratches, dents, cracks, rust, etc. Reduce the labor cost of quality inspectors and ensure the appearance of the workpieces in mass production.

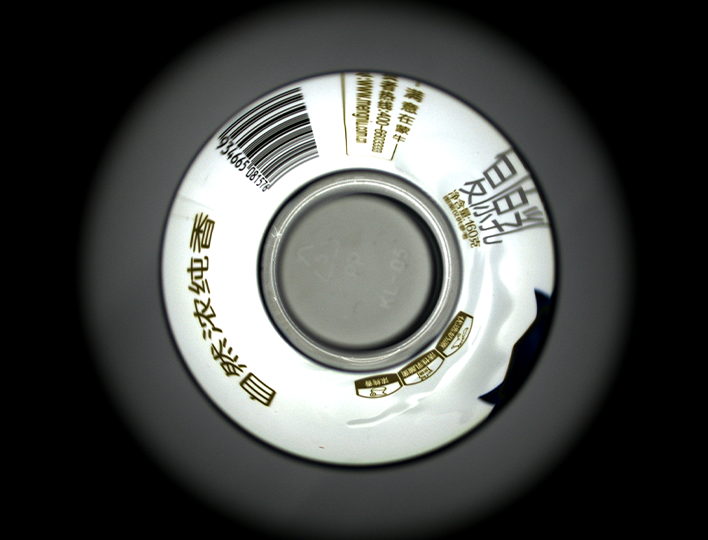

Bottle outer wall character detection
Full surface character detection: character integrity and clarity, position and typesetting, printing defects, color, etc. Improve production efficiency and reduce human error through automatic detection.
Q1. Can I have a sample order for 360 Degree Viewing Lens?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the 360 Degree Viewing Lens ?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for 360 Degree Viewing Lens ?
A: 1. Confirm parameters such as FOV and WD;
2. Confirm the shape, state, material and color of the detected object;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
HF-OR3601204A（Specifications & Drawings）.pdf
