MV-2100UC22-RP Microscope Industrial Camera 4/3" 5280x3956 20FPS
|
This series of Microscope USB3.0 area scan cameras includes color and monochrome,global and rolling shutter.Conforms to USB3.0 ultra-high speed communication protocol.Suitable for medical imaging,Microscopic imaging,low light imaging and other applications. ● Large target surface,high pixel. ● High sensitivity,ultra low noise. ● Image is transparent,smooth and delicate. ● Multiple cameras working at the same time. ● Supports DirectShow and Twain interfaces. |
| Model | Target size | Resolution | Pixel size | Shutter | Frame rate | Data interface | Lens Mount | Color/Mono | Remark |
| MV-520UM27-RP | 4/3" | 2640*1978 | 6.9um | Rolling | 27FPS | USB3.0 | C | Mono | |
| MV-630UC71-RP | 1/1.8" | 3072*2048 | 2.4um | Rolling | 71FPS | USB3.0 | C | Color | Microscope |
| MV-1201UC37-RP | 1/1.7" | 4000*3000 | 1.85um | Rolling | 37FPS | USB3.0 | C | Color | Microscope |
| MV-2100UC22-RP | 4/3" | 5280*3952 | 3.45um | Rolling | 22FPS | USB3.0 | C | Color | Microscope |
| MV-2000UC22-RP | 1" | 5480*3648 | 2.4um | Rolling | 22FPS | USB3.0 | C | Color | Microscope |
| MV-2500UC/M17-GP | 1.1" | 5120*5120 | 2.5um | Global | 17FPS | USB3.0 | C | Color/Mono | |
| MV-2502UM17-GP | 1.1" | 5120*5120 | 2.5um | Global | 17FPS | USB3.0 | C | Mono | |
| Please contact us learn more models ! | |||||||||
| Model | MV-2100UC22-RP |
| Camera Type | Microscope USB3.0 Camera |
| Sensor Type | Rolling Shutter |
| Resolution | 5280x3956 |
| Optical Size | 4/3" |
| Pixel Size | 3.5um×3.5um |
| Mono/Color | Color |
| Max Frame Rate | 20FPS |
| Gain | Gain:1-15times,step size:0.125times |
| Bit depth | 12bit |
| Exposure Time | 20us-10s |
| Picture size | 5280x3956 |
| Output Image Format | RAW8、RAW16、BMP24 |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Support format | RAW、BMP、JPEG、PNG |
| Power supply | USB 5V power supply |
| Typical Power Consumption | <2.5W |
| Lens Interface | C-Mount |
| Dimension | 48mm×56mm×43.9mm |
| Weight | <220g |
| IP Protection Rating | IP30 |
| Temperature | Operating temperature:－10℃~50℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Compatibility | USB3.0 Vision,GenlCam,HALCON,LabView,OpenCV |
| Certifications | CE,FCC,RoHS |

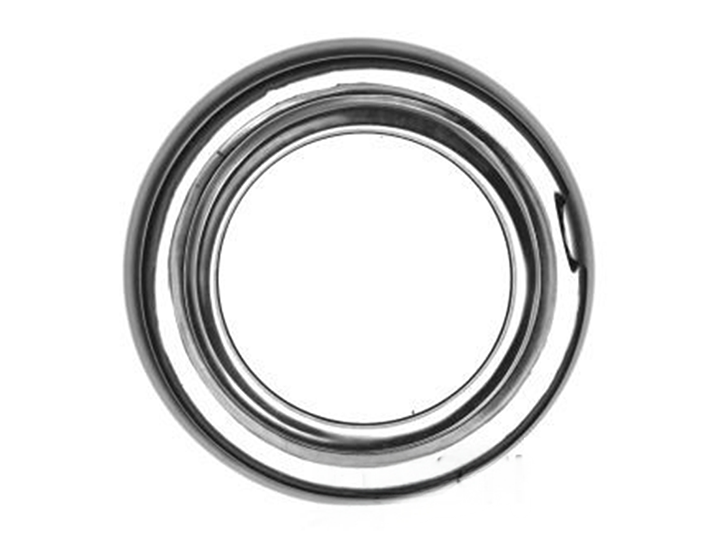

Glass medicine bottle detection
Cracks or missing corners in glass bottles will lead to leakage of lax sealing or microbial invasion, and directly contaminate drugs. Therefore, glass bottles need to be carefully tested before use to ensure their quality.

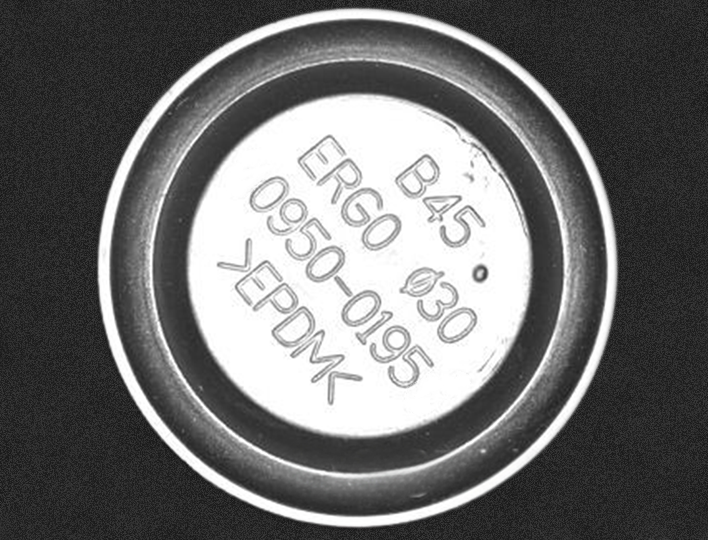

Bottle rubber stopper detection
Detecting the characters of rubber stoppers on glass medicine bottles is an indispensable link in the quality control of medicine production. Its core purpose is to ensure drug traceability, drug safety, production compliance, and prevent supply chain risks.

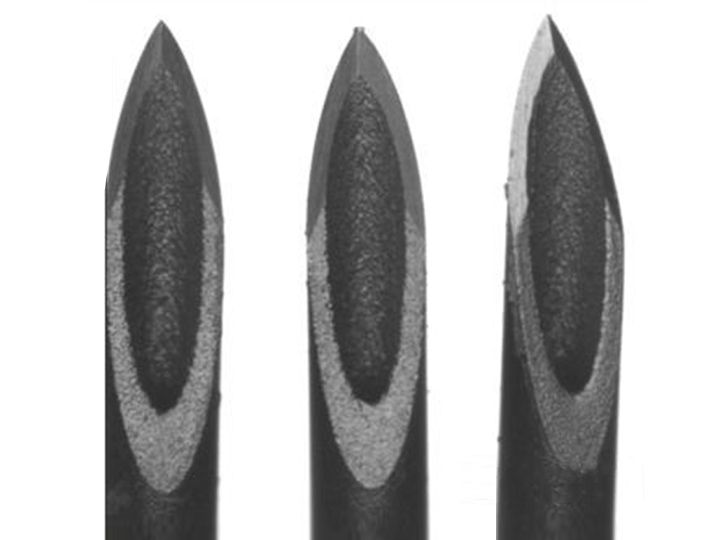

Syringe needle detection
As an invasive medical device that directly contacts with the human body, the burr, edge curl or Angle deviation of the needle edge will lead to the increase of puncture resistance, increase the pain and tissue damage of patients.
Biomedical detection
The essence of biological section detection using high-precision industrial cameras is to realize the accurate capture of cell microstructure and dynamic process through the integration of full-chain technology of optical imaging, photoelectric signal conversion, data processing and analysis.
Q1. Can I have a sample order for Microscope Area Scan Camera?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the Microscope Area Scan Camera?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for Microscope Area Scan Camera?
A: 1. Confirm camera resolution, sensor size, interface;
2. Confirm camera lens resolution, sensor size, focal length, logo, interface;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
MV-2100UC22-RP（Specifications & Drawings）.pdf
