MV-L083M-10G and C Line Scan Cameras for High-Speed Imaging

Home / Products / Industrial camera / Line scan camera / MV-L083M-10G/C Line Scan Camera

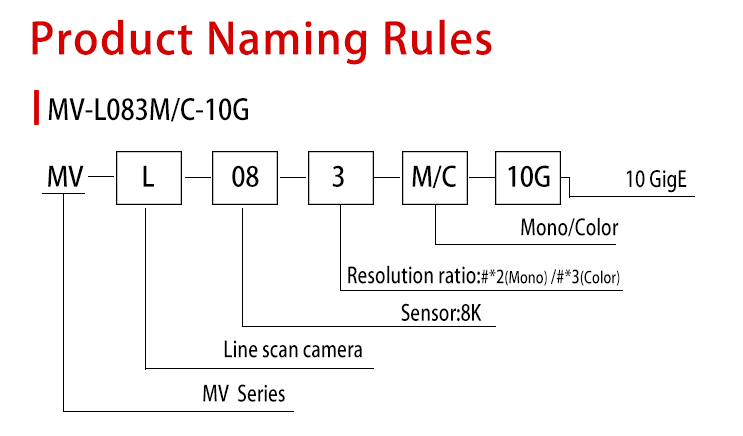

MV-L083C/M-10G Line Scan Camera 8K 7um 8192*3 Global

This series of 10 GigE line scan cameras includes color and mono. With multiple exposure automatic switching function.

● Using standard 10 Gigabit network interface design.

● The maximum transmission distance up to 100 meters , compatible with gigabit network.

● Effective bandwidth of 1200MByte , which is 10 times that of Gigabit network.

● Supports PC Linux system and ARM Linux system.

● Compatible with Vision protocol and other brand vision software.

Model	Resolution	Sensor	Shutter	Pixel size	Line frequency	Target size	TDI	Minimal exposure	Connector	Color
MV-LM044M-GE	4096×8	4K	Global	7μm	27.5k	28.6mm	4	0.003ms	GigE	Mono
MV-LM044C-GE	4096×6	4K	Global	7μm	27.5K	28.6mm	/	0.003ms	GigE	Color
MV-L042MT-10G	4096×256	4K	Global	5μm	8bit:250KHz 12bit:200KHz	21.177mm	256	0.004ms	10 GigE	Mono
MV-L083M-10G	8192×2	8K	Global	7μm	106KHz	57.344mm	2	0.004ms	10 GigE	Mono
MV-L083C-10G	8192×3(RGB)	8K	Rolling	7μm	50KHz	57.344mm	/	0.004ms	10 GigE	Color
MV-L082MT-10G	8192×256	8K	Global	5μm	8bit:145KHz 12bit:96KHz	41.673mm	256	0.004ms	10 GigE	Mono
MV-L164C-10G	16384×6	16K	Global	5μm	25KHz	81.92mm	2	0.004ms	10 GigE	Color
MV-L163C-10G	16384×2(Bayer)	16K	Global	3.5μm	72KHz	57.344mm	/	0.004ms	10 GigE	Color
MV-L163M-10G	16384×2	16K	Rolling	3.5μm	8bit:72KHz 12bit:87.7KHz	57.344mm	2	0.004ms	10 GigE	Mono
MV-L162MT-10G	16384×256	16K	Global	5μm	8bit:72KHz 12bit:48KHz	82.666mm	256	0.004ms	10 GigE	Mono
Please contact us learn more models !

Specification

Model	MV-L083C/M-10G
Sensor	8K
Color	Color/Mono
Target size	57.344mm
Pixel size	7μm
Shutter	Global
Resolution	Color:8192×3(RGB) Mono:8192×2
Imaging mode	Supports multiple exposure and 2Line TDI
Dynamic range	65dB
SNR	41.5dB
AD width	12bit
Pixel output width	8bits
Maximum gain	4
Exposure time range	0.004~50ms
Video output format & Maximum line frequency	Color:Bayer 8bit:50K Mono: Mono8 bit:106k Mono 12bit:70k
Binning	Software Bin2 Bin4 Sun2 Sun4
Mirror image	Software image: left and right, up and down hardware image: up and down
Trigger mode	Continuous/software trigger/frame trigger/line trigger/conditional line trigger
Frame buffer	1GB
User EEPROM	2KB
Data interface	10 GigE(10GB copper cable 10GBase-T, compatible with 100M/1G/2.5/5G))
I/O	2 differential RS422 inputs,1 optocoupler input, 2 optocoupler output
Power supply	12V±10%
Power	Color: <15W Mono:<10W
Lens mount	M72, Flange distance 12mm
Dimension	80x80x69.29mm (excluding lens holder and rear shell interface)
Weight	<1000g
Operating temperature	0~50°
Operating humidity	20~80% (no condensation)
Storage temperature	-30~ 60°
Storage humidity	20~95% (no condensation)
Video standard protocol	GigE Vision V1.2,GenICam
Drive program	Directshow component Halcon special component Labview special drive OCX component TWAIN component
Programming language packages	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Operating system	WINXP, WIN7/8/10 32&64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system
Other functions	Support arbitrary size ROI custom resolution, multiple exposure, contrast and gamma adjustment, saturation adjustment, white balance correction, black point correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, and more

Applications Case

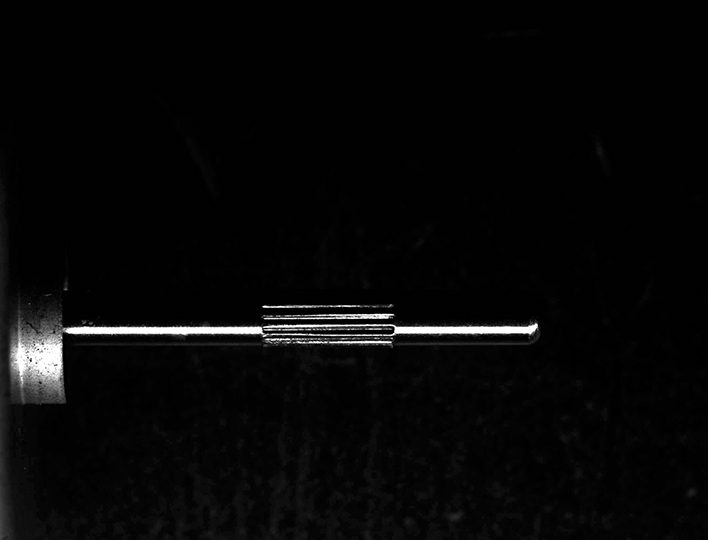

Motor gear judgment detection

The product is transmitted to the specified location and the camera is triggered to take a picture. Image analysis determines if the gear is missing or tilted, from which an OK or NG command is issued.

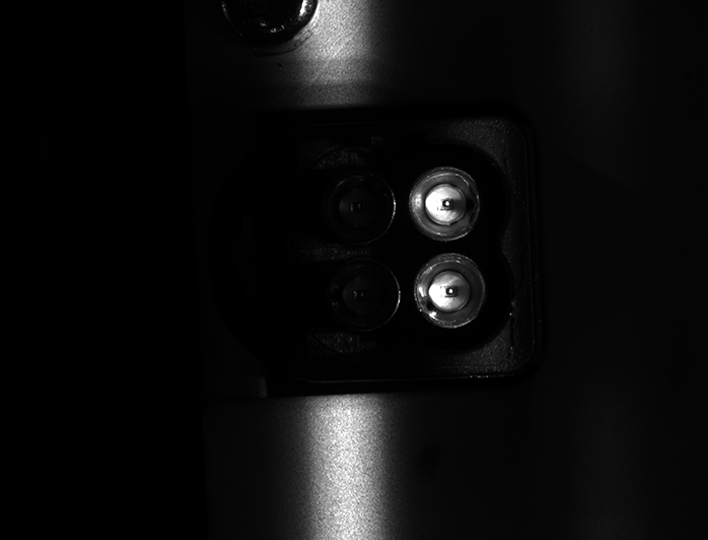

Automotive controller Pin inspection

The small size of the pins of the car controller makes it difficult to judge the defects by the naked eye. The use of high-precision line scan camera detection can quickly determine the situation of the pin, improve work efficiency.

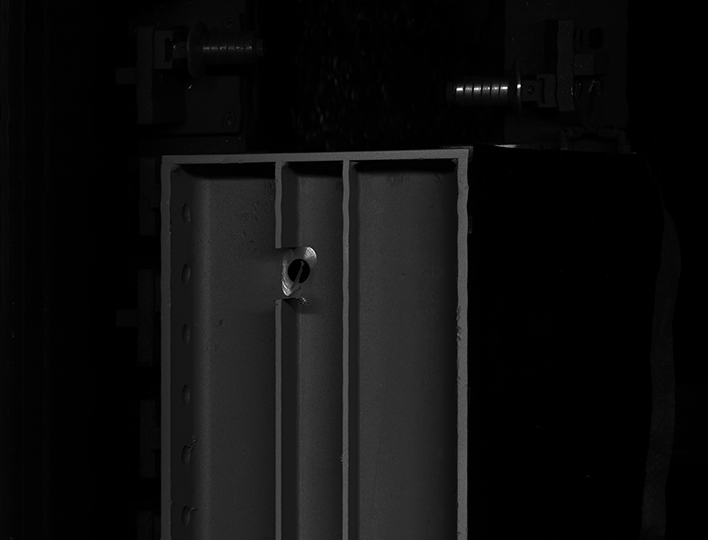

Aluminum film detection

Aluminum film can protect the surface of the product from damage, improve product quality and efficiency. Therefore, testing the integrity of aluminum film coverage is a necessary link in production.

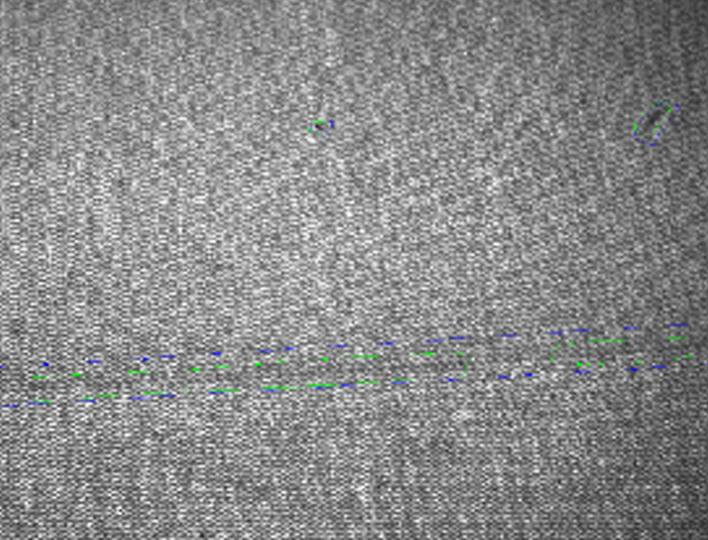

Non-woven fabric defect detection

Non-woven fabric has large area, many styles and complex defect types. The efficiency of traditional visual inspection is low and the accuracy of defect detection is unstable. The machine vision detection effect has high precision and accuracy.
