MV-032UC721-GS USB3.0 Industrial Camera 1/5" 721FPS

HIFLY this series of USB3.0 area scan cameras includes color and monochrome, global and rolling shutter.Fastest transmission speed reaches 440MByte/s.

● Ultra-small size,industry-universal fixing holes.

● Low power consumption,strong stability.

● Built-in large-capacity image cache to ensure reliable and real-time transmission.

● Third party visual development software,based on USB3.0 Vision,GenICam development.

● Camera hardware graphics accelerator implements image preprocessing.

● Dimensions: 29mm×29mm×29mm.

Model	Target size	Resolution	Pixel size	Shutter	Frame rate	Data interface	Lens Mount	Color/Mono	Remark
MV-032UC/M721-GS	1/5"	640*480	4.0um	Global	721FPS	USB3.0	C	Color/Mono
MV-040UM901-GS	1/5"	640*480	4.0um	Global	721FPS	USB3.0	C	Mono
MV-130UC/M213-GS	1/2.7"	1280*1024	4.0um	Global	213FPS	USB3.0	C	Color/Mono
MV-136UC/M257-GS	1/2.7"	1280*1024	4.0um	Global	257FPS	USB3.0	C	Color/Mono
MV-160UC/M240-GS	1/2.2"	1480*1092	4.0um	Global	240FPS	USB3.0	C	Color/Mono
MV-230UC/M40-GS	1/1.2"	1920*1200	5.86um	Global	40FPS	USB3.0	C	Color/Mono
MV-231UC/M170-GS	1/1.7"	2048*1200	4.0um	Global	170FPS	USB3.0	C	Color/Mono
MV-502UM31-RS	1/2.5"	2592*1944	2.2um	Rolling	31FPS	USB3.0	C	Mono
MV-518UC/M85-GS	2/3"	2448*2048	3.4um	Global	85FPS	USB3.0	C	Color/Mono
MV-630UC/M71-RS	1/1.8"	3072*2048	2.4um	Rolling	71FPS	USB3.0	C	Color/Mono
MV-836UC50-RS	1/1.8"	3840*2160	2.0um	Rolling	50.6FPS	USB3.0	C	Color
MV-1201UC/M36-RS	1/1.7"	4000*3000	1.85um	Rolling	35.9FPS	USB3.0	C	Color/Mono
MV-1207UC/M31-GS	1"	4096*3072	3.2um	Global	31FPS	USB3.0	C	Color/Mono
MV-1209UC32-GS	1.1"	4096*3072	3.4um	Global	31.9FPS	USB3.0	C	Color
MV-1209UM33-GS	1.1"	4096*3072	3.4um	Global	31.9FPS	USB3.0	C	Mono
MV-2000UC/M22-RS	1"	5480*3648	2.4um	Rolling	22FPS	USB3.0	C	Color/Mono
MV-520UM27-RP	4/3"	2640*1978	6.9um	Rolling	27FPS	USB3.0	C	Mono
MV-630UC71-RP	1/1.8"	3072*2048	2.4um	Rolling	71FPS	USB3.0	C	Color	Microscope
MV-1201UC37-RP	1/1.7"	4000*3000	1.85um	Rolling	37FPS	USB3.0	C	Color	Microscope
MV-2100UC22-RP	4/3"	5280*3952	3.45um	Rolling	22FPS	USB3.0	C	Color	Microscope
MV-2000UC22-RP	1"	5480*3648	2.4um	Rolling	22FPS	USB3.0	C	Color	Microscope
MV-2500UC/M17-GP	1.1"	5120*5120	2.5um	Global	17FPS	USB3.0	C	Color/Mono
MV-2502UM17-GP	1.1"	5120*5120	2.5um	Global	17FPS	USB3.0	C	Mono
MV-2500UM30-DU	1.1"	5120*5120	2.5um	Global	30FPS	USB3.0*2	C	Mono
MV-2501UM47-DU	4/3"	4112*4112	3.5um	Global	47FPS	USB3.0*2	C	Mono
MV-2502UM30-DU	1.1"	5120*5120	2.5um	Global	30FPS	USB3.0*2	C	Mono
MV-501UC/M60-RT	1/2.5"	2568*1920	2.2um	Rolling	60FPS	USB3.0	M10.5	Color/Mono	Ultra - miniature
MV-501UC/M60-RT-V1	1/2.5"	2568*1920	2.2um	Rolling	60FPS	USB3.0	M12	Color/Mono	Ultra - miniature
Please contact us learn more models !

Specification

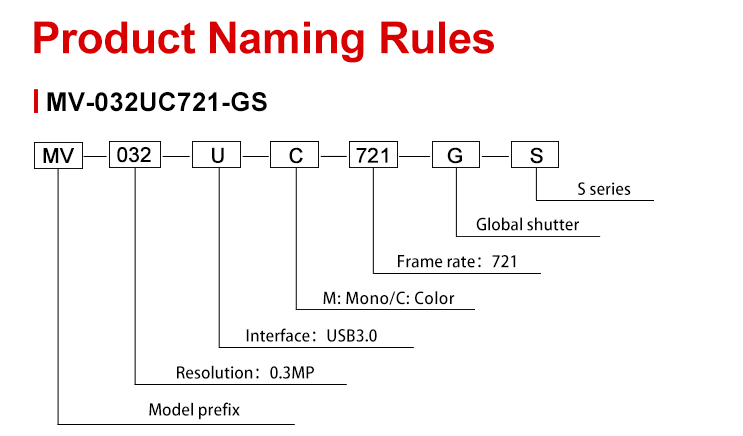

Model	MV-032UC721-GS
Sensor Type	Global Shutter
Resolution	640×480
Optical Size	1/5"
Pixel Size	4.0um×4.0um
Mono/Color	Color
Max Frame Rate	721FPS
Gain	1x~3x,step0.125x
Dynamic range	40db
Exposure Time	5us-43ms
Exposure Mode	/
Output Image Format	RAW8、RAW16、BGR24、MONO8、MONO16
Trigger Mode	Hardware Trigger, Software Trigger
Image Cache	1Gbit
Data Interface	USB3.0
I/O Interface	/
Power supply	USB5V power supply
Typical Power Consumption	Working:1.64W,standby:1.12W
Lens Interface	C-Mount
IO and Power Interface	/
Filter	/
Dimension	29mmx29mmx29mm (lens connector not included)
Weight	Approx. 40g
IP Protection Rating	IP30
Temperature	Operating temperature:－10℃~50℃
Humidity	5% ~ 90%RH (non-condensing)
Compatibility	USB3.0Vision,GenlCam,HALCON,LabView,OpenCV
Operating Systems	Windows7/10 32/64bit；PC Linux 32/64bit
Certifications	CE,FCC,RoHS

Applications Case

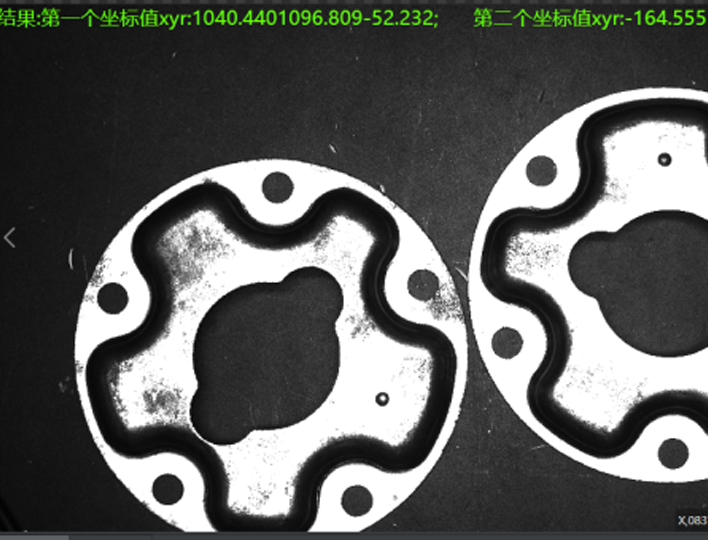

Iron ring coordinate positioning

Parameters such as roundness error can be further calculated by visually locating the iron ring coordinates. Eliminate unqualified products to ensure the quality of products.

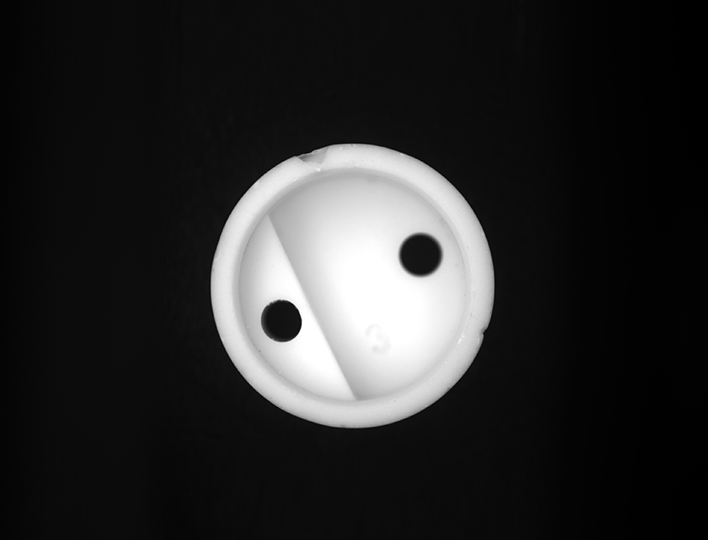

Ceramic defect detection

By positioning the ceramic outer ring, the black and white area control detection method is adopted. The collected image is compared with the qualified product image. Remove products with missing Angle of outer ring.

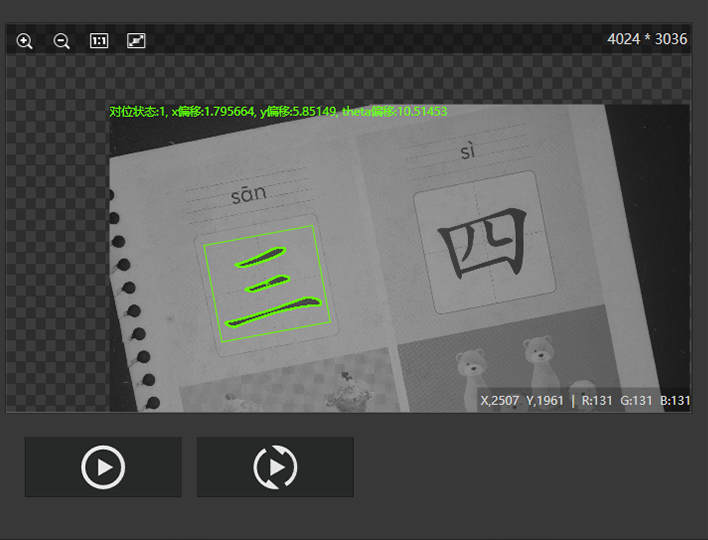

Character coordinate positioning on paper

Machine vision locates the characters on the paper through model matching. It calculates the offset value based on the image angle and provides the accurate coordinates of the characters.

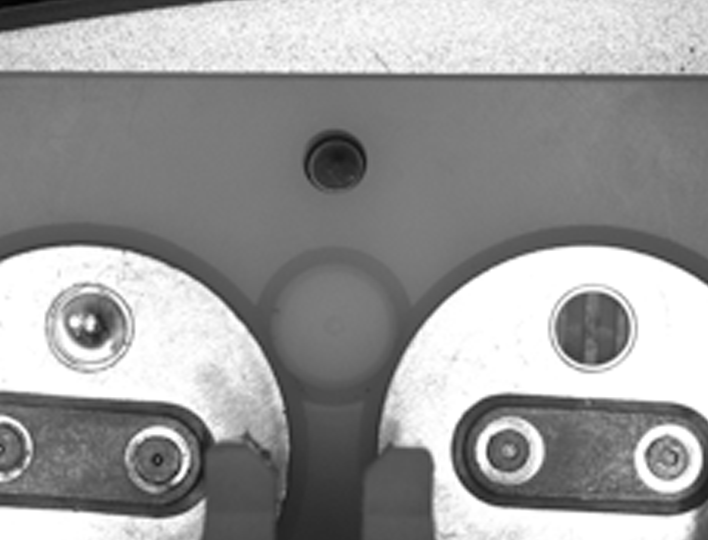

Material positioning detection

There is some error in the fitting material. The unification of the dual coordinate systems is achieved through the collaborative work of two cameras. Repeated test the film and fine-tune the camera offset to achieve positional fit.
