MV-2500UM30-DU Industrial Camera 1.1" 5120×5120 30FPS
|
This series of Microscope USB3.0 area scan cameras includes color and monochrome,global and rolling shutter.Conforms to USB3.0 ultra-high speed communication protocol.Suitable for medical imaging,Microscopic imaging,low light imaging and other applications. ● 10G communication bandwidth. ● High performance hardware image processor, support a variety of image processing, reduce the host CPU consumption. ● Built-in large capacity frame buffer to ensure reliable and real-time transmission. ● Ultra-low power fanless design, no dust and zero vibration. |
| Model | Target size | Resolution | Pixel size | Shutter | Frame rate | Data interface | Lens Mount | Color/Mono |
| MV-2500UM30-DU | 1.1" | 5120*5120 | 2.5um | Global | 30FPS | USB3.0*2 | C | Mono |
| MV-2501UM47-DU | 4/3" | 4112*4112 | 3.5um | Global | 47FPS | USB3.0*2 | C | Mono |
| MV-2502UM30-DU | 1.1" | 5120*5120 | 2.5um | Global | 30FPS | USB3.0*2 | C | Mono |
| Please contact us learn more models ! | ||||||||
| Model | MV-2500UM30-DU |
| Sensor Type | Global Shutter |
| Resolution | 5120×5120 |
| Optical Size | 1.1" |
| Pixel Size | 2.5um×2.5um |
| Mono/Color | Mono |
| Max Frame Rate | 30FPS |
| Gain | 1.0X-5.0X |
| Dynamic range | 65db |
| Exposure Time | 12us-6s 610ms120us |
| SNR | 40db |
| Output Image Format | RAW,MONO |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Bit depth | 12bit |
| Data Interface | 2*USB3.0 interface |
| Sensitivity | 1.03x10^7e/(W/m)s) |
| Power supply | USB5V power supply |
| Typical Power Consumption | <5W |
| Lens Interface | C-Mount |
| Spectral response | 390nm-1050nm |
| Dimension | 56mmx56mmx36.2mm |
| Weight | <185g |
| IP Protection Rating | IP30 |
| Temperature | Operating temperature:－10℃~50℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Compatibility | USB3.0Vision,GenlCam,HALCON,LabView,OpenCV |
| Certifications | CE,FCC,RoHS |

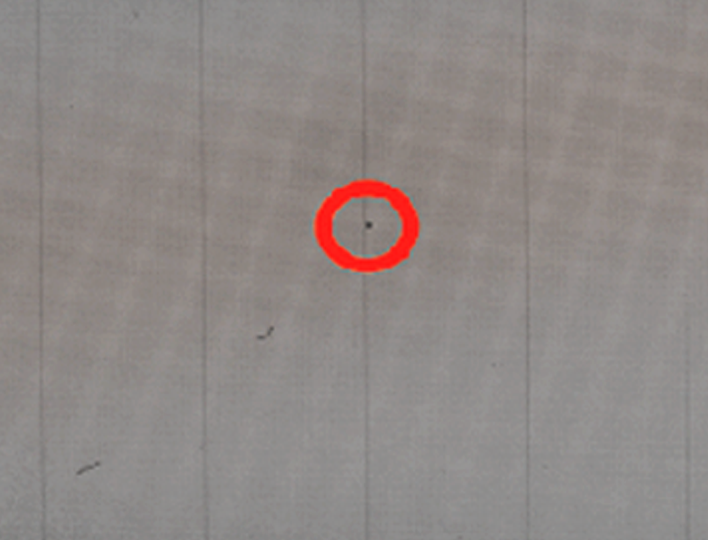

Monitor screen detection
Some mobile phone screen production lines use machine vision systems to detect screen surface defects, such as scratches and dust, through linear array cameras and strip light sources. At the same time, a high-resolution camera is used to capture the image of the screen with a solid color background and detect pixel defects (bad spots, bright spots, dark spots, etc.).

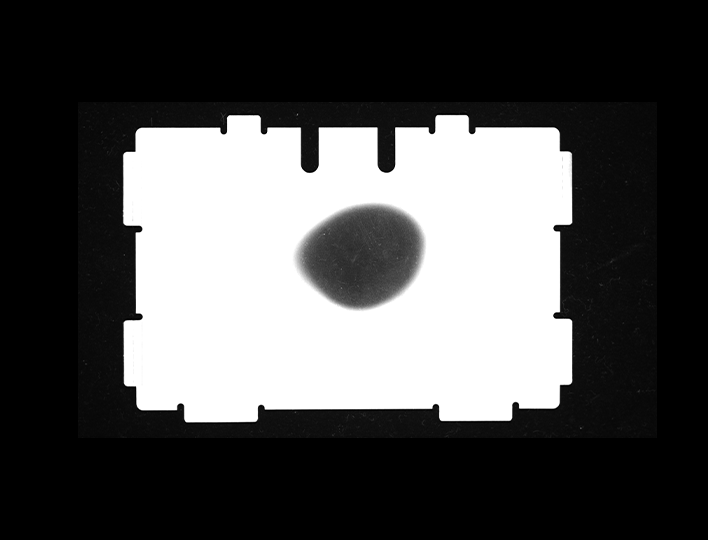

Vibration disk positioning patch detection
In the PCB patch link of SMT production line, the camera locates and detects the micro components at high speed to ensure that the mounting accuracy meets the requirements of reflow soldering.

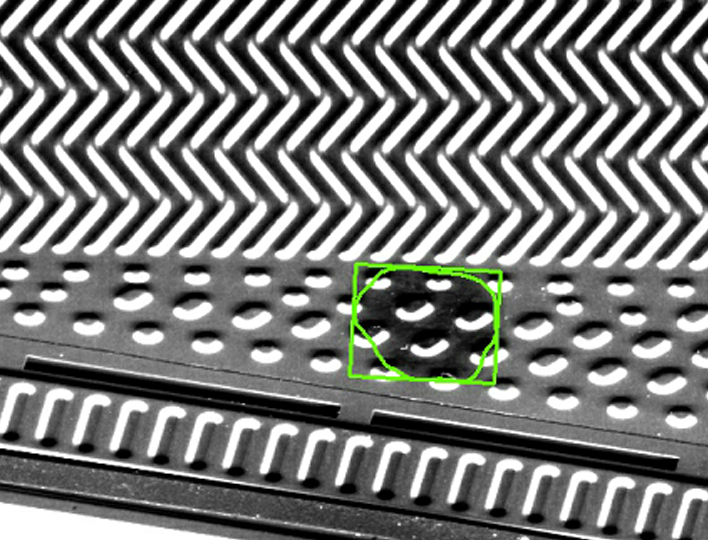

Battery membrane electrode defect detection
The presence of cracks, pinholes or burring in the electrode film will lead to direct contact between the positive and negative electrodes, causing an internal short circuit. Inspection identifies such defects in advance, reducing the risk of short circuits by more than 90%.

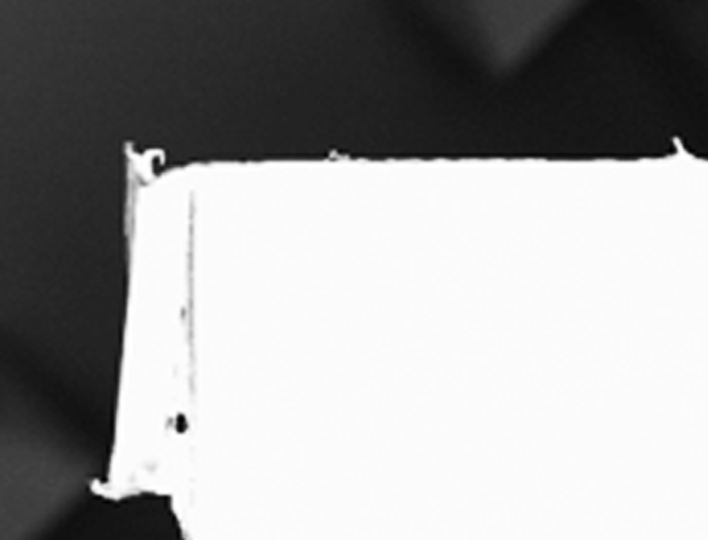

Edge detection of photovoltaic panels
Cutting damage at the edge of the silicon wafer can trigger edge leakage. The local temperature of the photovoltaic panel with edge leakage can increase by 15-20℃ under strong light, forming hot spots, which will accelerate the aging of the module.
Q1. Can I have a sample order for area scan camera?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the area scan camera?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for area scan camera?
A: 1. Confirm camera resolution, sensor size, interface;
2. Confirm camera lens resolution, sensor size, focal length, logo, interface;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
