MV-135GM120-GB Industrial Camera 1/4" 1000x1000 120FPS
|
This series of GigE area scan cameras is monochrome, global shutter. Flexible cable connection, the longest support 300mm communication distance. ● 15.8mm ultra narrow single motherboard design. ● The main board is connected with the SENSOR board using soft cable,flexible installation. ● Hardware image processor that optimizes the image for the matching algorithm. ● Built-in large capacity frame buffer to ensure real-time and reliable transmission of multi-camera. ● Dimensions：20mmx18mmx94mm |

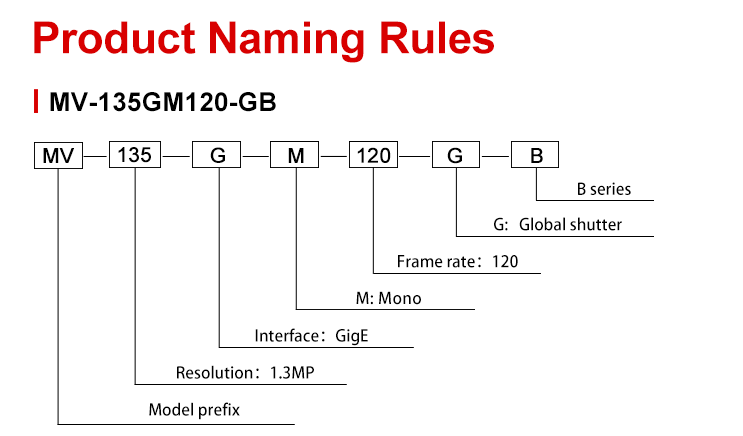

| Model | Target size | Resolution | Pixel size | Shutter | Frame rate | Data interface | Lens Mount | Color/Mono |
| MV-135GM120-GB | 1/4" | 1000*1000 | 2.7um | Global | 120FPS | GigE | M12 | Mono |
| Please contact us learn more models ! | ||||||||
| Model | MV-135GM120-GB |
| Sensor Type | Global Shutter |
| Resolution | 1000×1000 |
| Optical Size | 1/4" |
| Pixel Size | 2.7um×2.7um |
| Mono/Color | Mono |
| Max Frame Rate | 120FPS |
| Gain | 1.0x-32.0x, step: 0.125x |
| Trigger interface | 4 pin Wafer socket |
| Exposure Time | 7us-523ms876us |
| Exposure function | Manual exposure/auto exposure/area exposure |
| Output Image Format | RAW8/RAW12(Original image)RAW8/RAW16/MONO8/MONO16 |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Bit depth | 10bit |
| Data Interface | GigE |
| Support Multi-camera | 16 units |
| Power supply | DC9-28V |
| Typical Power Consumption | <2W |
| Lens Interface | M12 |
| Spectral response | 300nm-1000nm |
| Dimension | 20mmx18mmx94mm（Including the shell） |
| Weight | ≈48g |
| IP Protection Rating | IP30 |
| Temperature | Operating:－10℃~50℃,Storage:－30℃~70℃ |
| Humidity | Operating:10% ~ 60%RH (non-condensing),Storage:10%-80%RH |
| Standard fittings | 3 meters network cable |

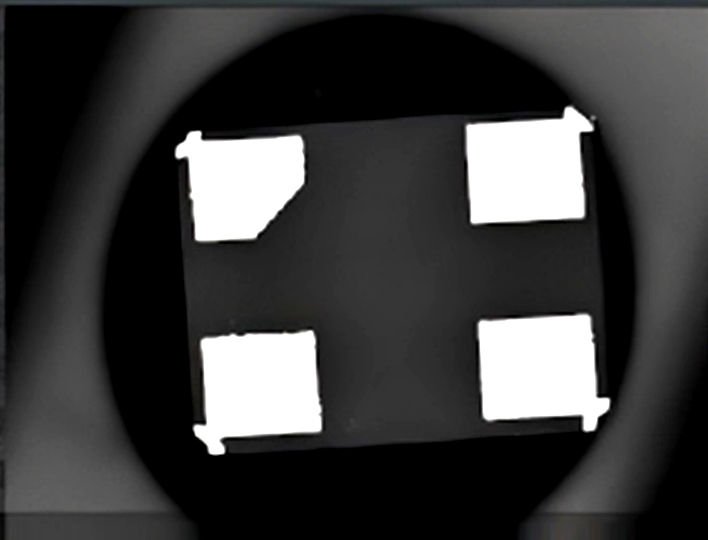

Chip positioning and correction
Dual camera online integration. The material in the vibrating plate was photographed by the upper camera, positioned and grabbed. The lower camera corrects the offset, calculates the offset and sends it to the upper computer for feeding the material tray.

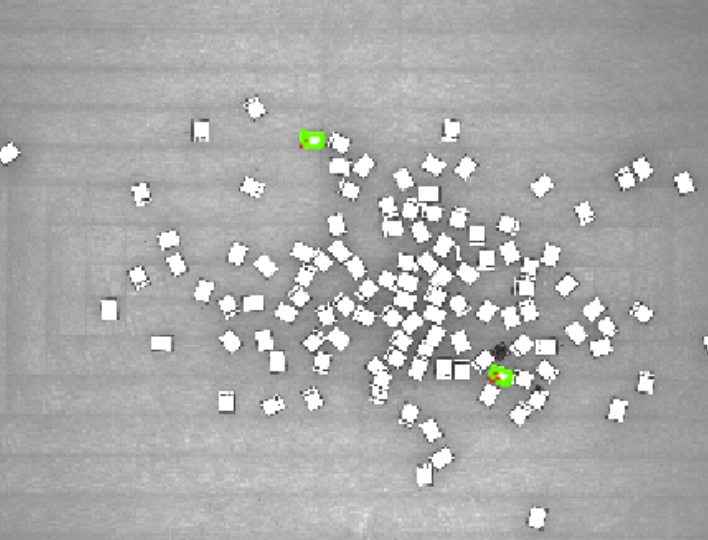

Vibration plate positioning and grasping
Multi-camera online integration. Locate the chip facing up on the vibration plate, and send the coordinates to the host computer to control the suction nozzle to absorb the chip.

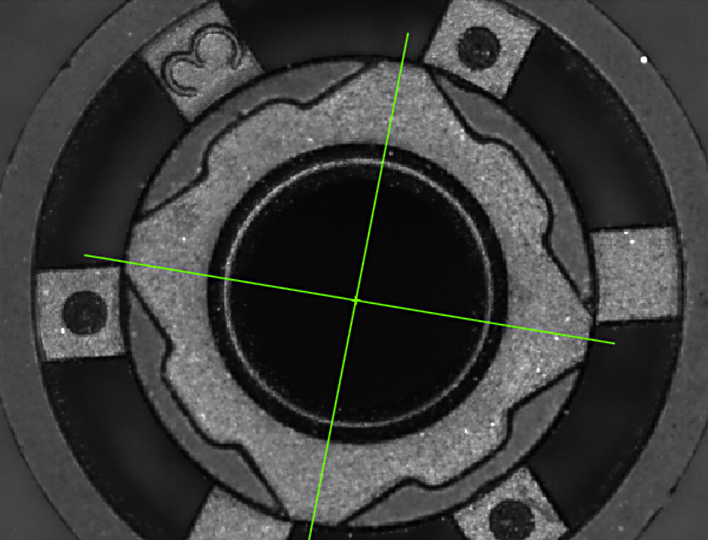

Lens alignment fit detection
The calibration method was customized using the separation axis motion mechanism. Accurately locate the edge and center of the lens to reach the focus, and give the coordinates to the host computer to control the manipulator to fit.

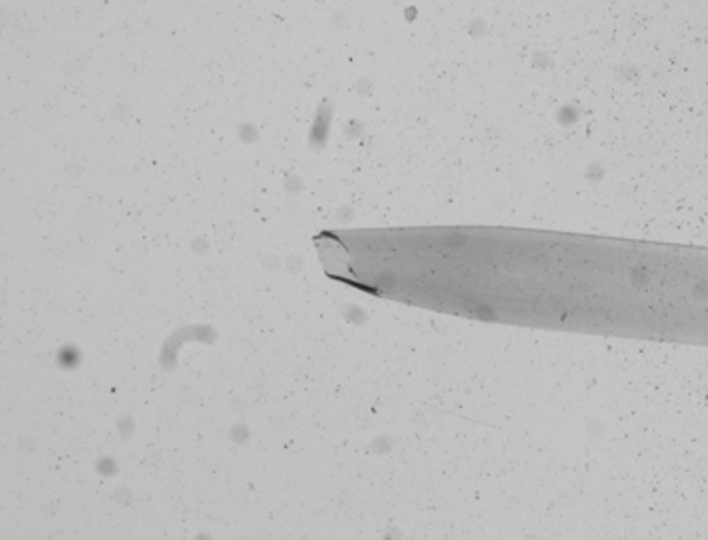

Fiber positioning and cutting
After taking pictures through the camera, the position of the specific width of the fiber is positioned, and then the laser cutting is guided.
Q1. Can I have a sample order for Area Scan Camera?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the Area Scan Camera?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for Area Scan Camera?
A: 1. Confirm camera resolution, sensor size, interface;
2. Confirm camera lens resolution, sensor size, focal length, logo, interface;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
MV-135GM120-GB（Specifications & Drawings）.pdf
