How to Select Machine Vision Light Sources: A Guide to Perfect Illumination

In the fast-paced world of machine vision, your camera might be the star, but the real magic happens with the right light source. Proper illumination can make or break your system’s ability to spot defects, read codes, or measure parts with precision. With options ranging from LEDs to ring lights, choosing the best light source feels like finding the perfect spotlight for a performance. Get it wrong, and you’re left with shadows or glare; get it right, and your vision system shines.

In this episode, we’ll walk you through how to select machine vision light sources, covering key factors, popular types, and practical tips. Whether you’re setting up a new line or optimizing an existing one, let’s light the way to success—starting now!

Why Lighting Matters in Machine Vision

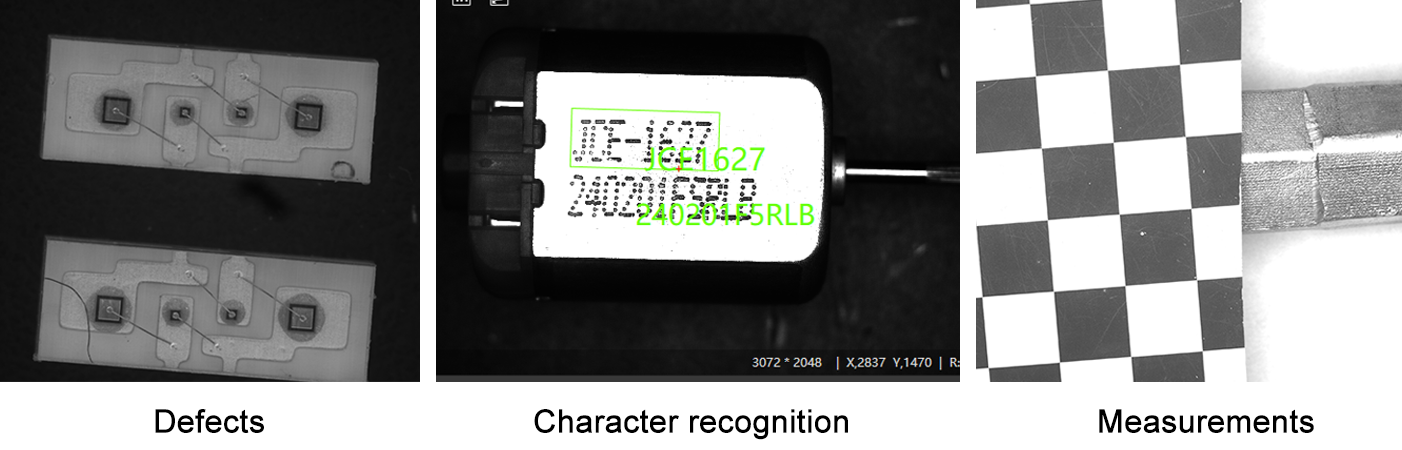

Machine vision systems rely on clear, consistent images to analyze objects. A camera can only “see” what the light reveals, and poor illumination leads to missed defects or inaccurate measurements. The right light source enhances contrast, reduces glare, and highlights features like edges or textures. It’s the foundation that ensures your automation delivers reliable results, making selection a critical step for any project.

Let’s break down what to consider when picking the perfect light.

Key Factors to Consider

Choosing the right light source isn’t a one-size-fits-all decision. Here’s what to keep in mind:

1. Application Type

Are you inspecting flat surfaces, cylindrical objects, or moving parts? Each needs tailored lighting to reveal details effectively.

2. Wavelength and Color

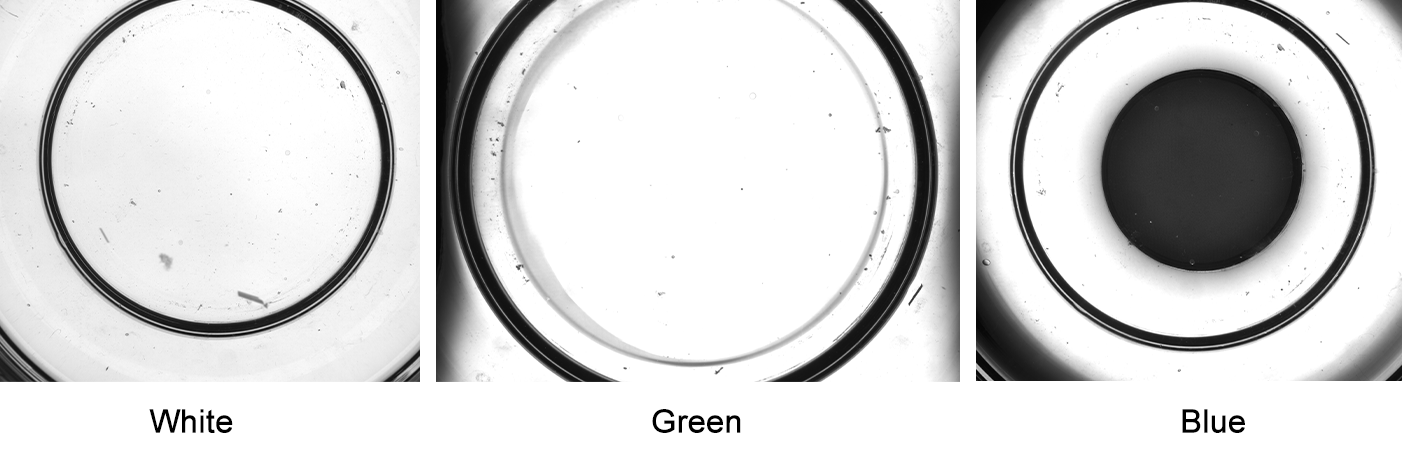

Different colors (e.g., red, blue, white) highlight specific features. Red light might enhance contrast for metal surfaces, while blue can spotlight plastic flaws.

3. Lighting Geometry

The angle and direction of light—direct, diffuse, or backlit—affect how features appear. Direct light works for edges; diffuse light softens reflections.

4. Intensity and Uniformity

High-intensity light suits fast-moving lines, while uniform illumination prevents hot spots or shadows.

5. Environment

Dust, heat, or moisture in your workspace might require rugged, sealed lighting options.

6. Budget and Lifespan

LEDs are energy-efficient and long-lasting, but specialized lights might cost more upfront.

Popular Types of Machine Vision Light Sources

Here’s a rundown of the most common lighting options and when to use them:

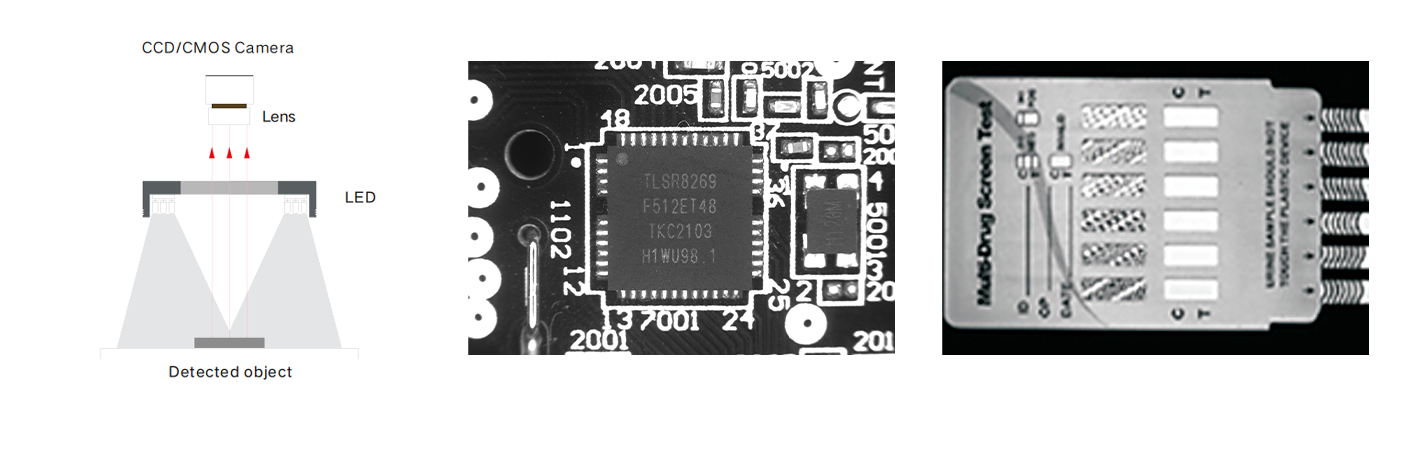

1. Ring Lights

How They Work : Circular lights surround the camera lens, providing even illumination.

Best For : Inspecting flat surfaces like circuit boards or labels.

Why It Works : Reduces shadows and is easy to integrate with most setups.

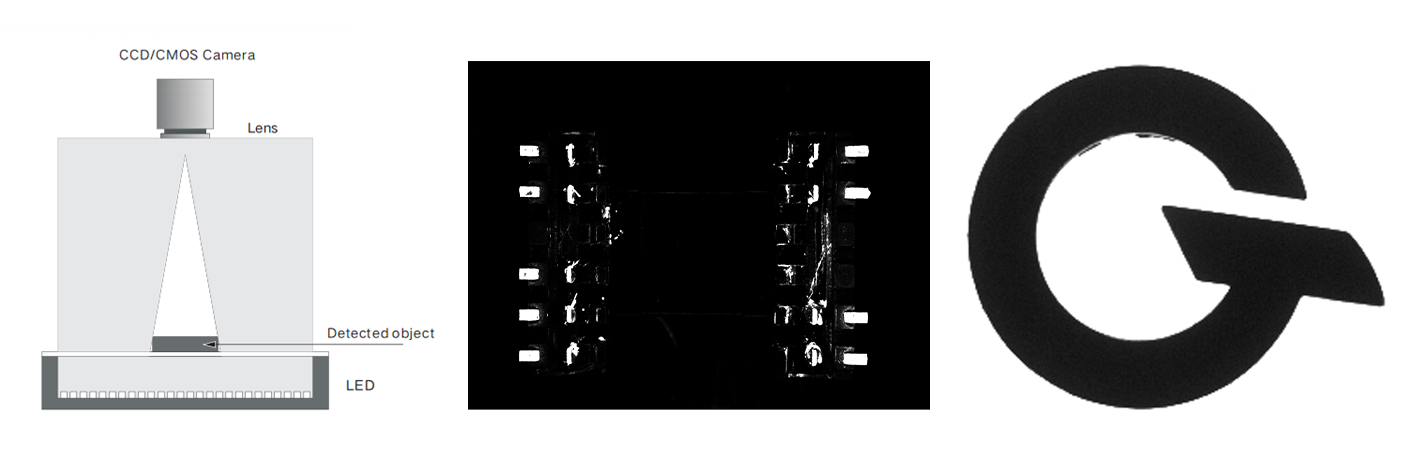

2. Backlights

How They Work : Light shines from behind the object, creating a silhouette effect.

Best For : Measuring dimensions or detecting holes in parts.

Why It Works : Offers high contrast for edge detection.

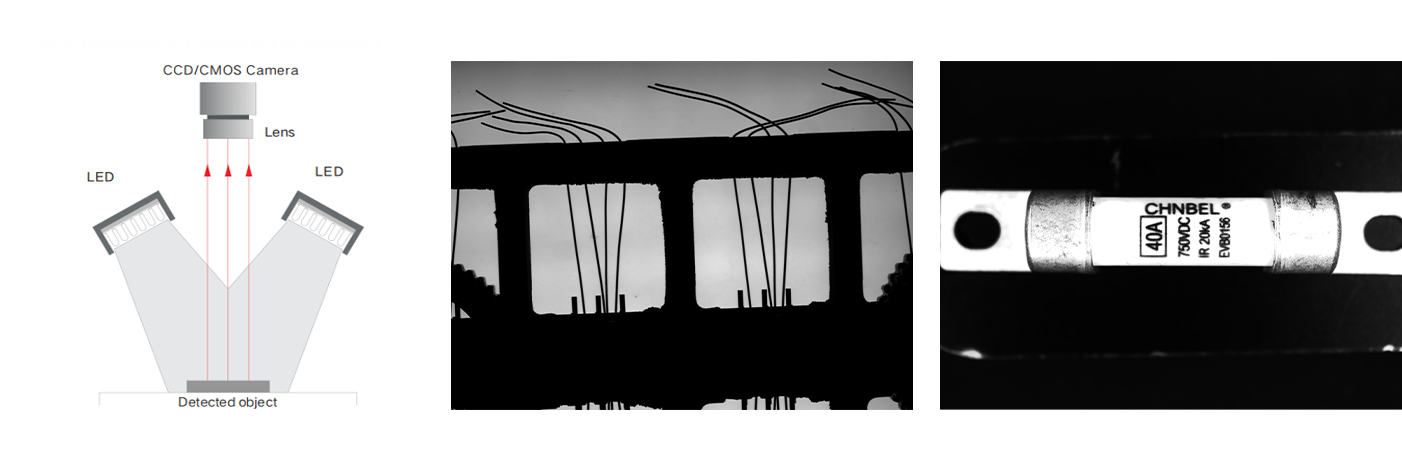

3. Bar Lights

How They Work : Long, linear lights positioned parallel to the object.

Best For : Scanning wide or moving surfaces like paper rolls.

Why It Works : Delivers uniform light over large areas.

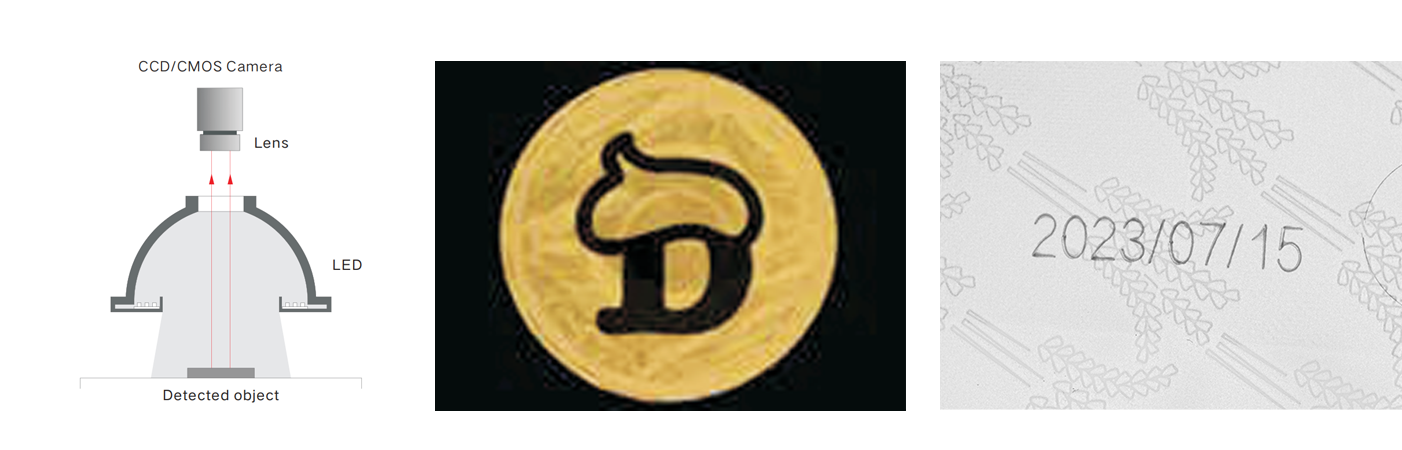

4. Dome Lights

How They Work : A dome-shaped diffuser scatters light evenly.

Best For : Shiny or reflective surfaces like metal or glass.

Why It Works : Minimizes glare and highlights subtle defects.

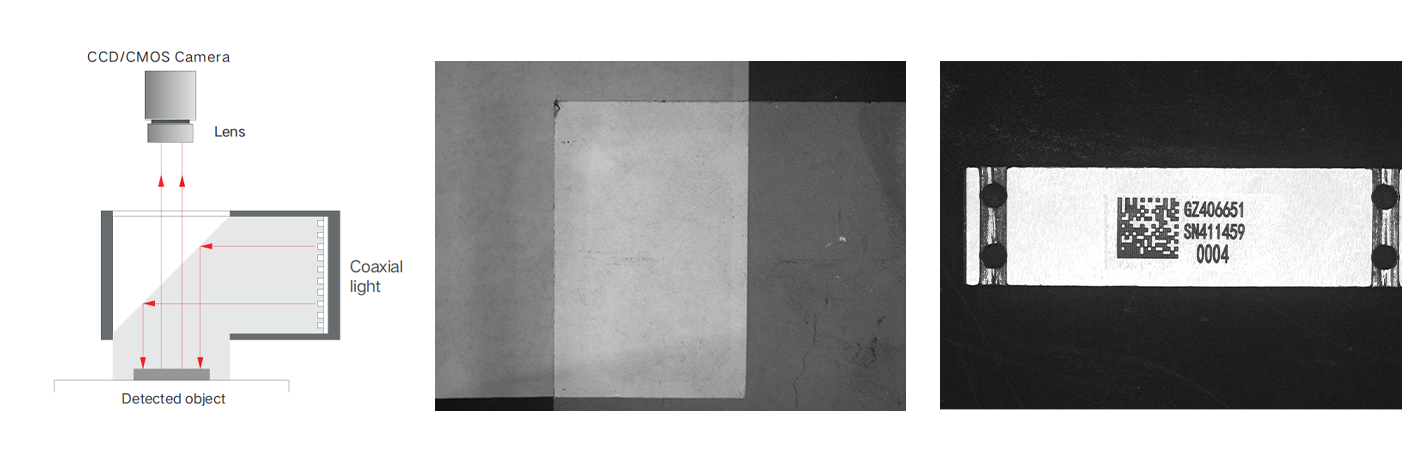

5. Coaxial Lights

How They Work : Light reflects through a beam splitter, illuminating from the camera’s perspective.

Best For : Flat, reflective objects or barcode reading.

Why It Works : Ensures even lighting on challenging surfaces.

Practical Tips for Selection

Test Before Committing : Run trials with sample parts under different lights to see what reveals the most detail.

Match to Industrial Camera : Ensure your light’s wavelength aligns with your camera’s sensor sensitivity.

Consider Automation : Choose lights with adjustable intensity or triggers for dynamic lines.

Consult Experts : Work with a supplier to tailor lighting to your specific setup.

For example, if you’re inspecting a conveyor of bottles at 1,000 units per minute, a high-intensity bar light synced with your camera might be the winner.

Common Challenges and Solutions

Glare on Shiny Surfaces : Use dome lights or polarized filters to cut reflections.

Inconsistent Lighting : Opt for diffuse lights or adjust angles to avoid shadows.

Heat Buildup : Select LED lights with heat sinks for long-term reliability.

With the right tweaks, these hurdles become stepping stones to success.

The Impact of the Right Light Source

A well-chosen light source doesn’t just improve images—it transforms your operation:

Higher Accuracy : Clearer images mean fewer errors in defect detection.

Faster Processing : Optimal lighting reduces the need for multiple scans.

Cost Savings : Fewer rejections and less downtime boost your bottom line.

Scalability : The right setup grows with your production demands.

In today’s competitive landscape, lighting is a strategic advantage.

The Future of Machine Vision Lighting

As technology advances, smart lighting with adaptive brightness and AI-driven adjustments is on the horizon. These innovations promise even greater precision, making now the perfect time to upgrade your system.
